Gold Aluminum Underfloor Heating

Product Details

Details

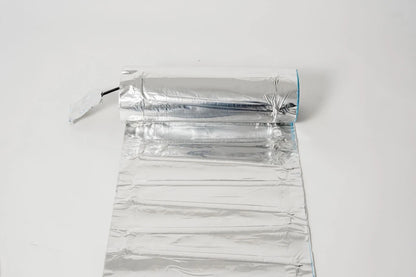

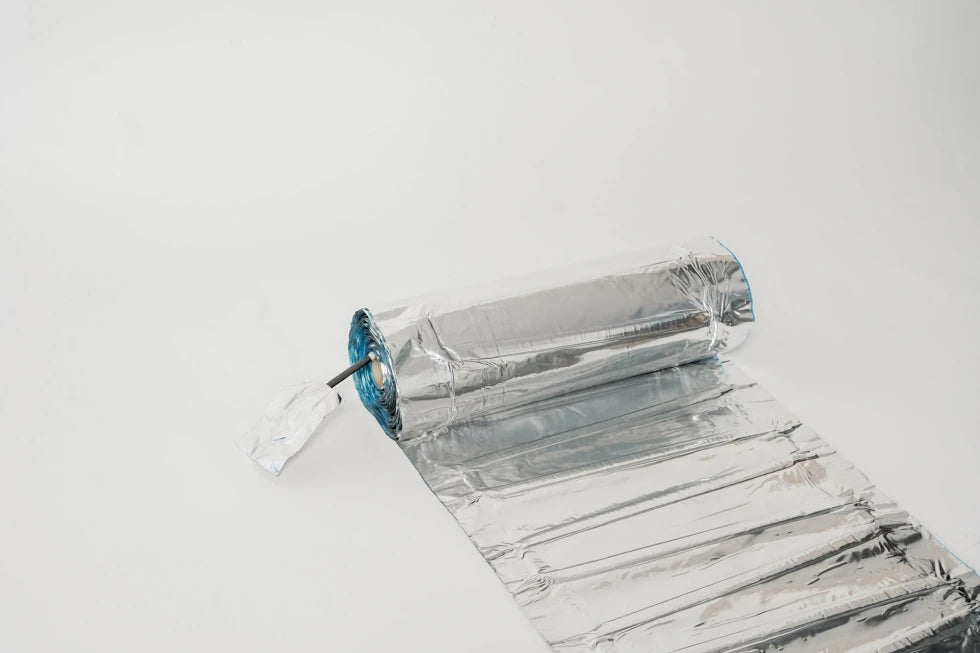

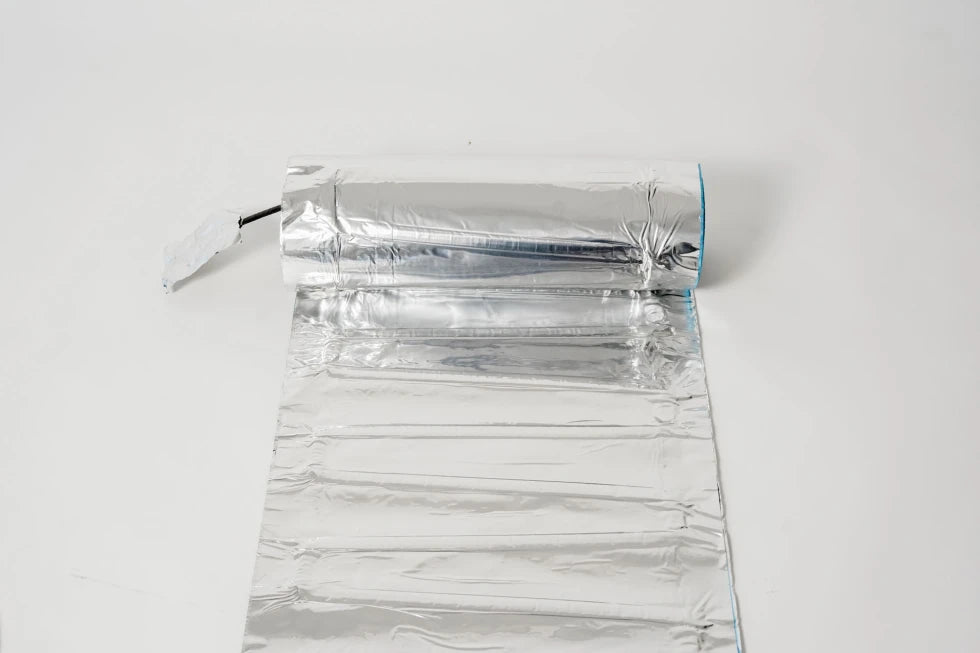

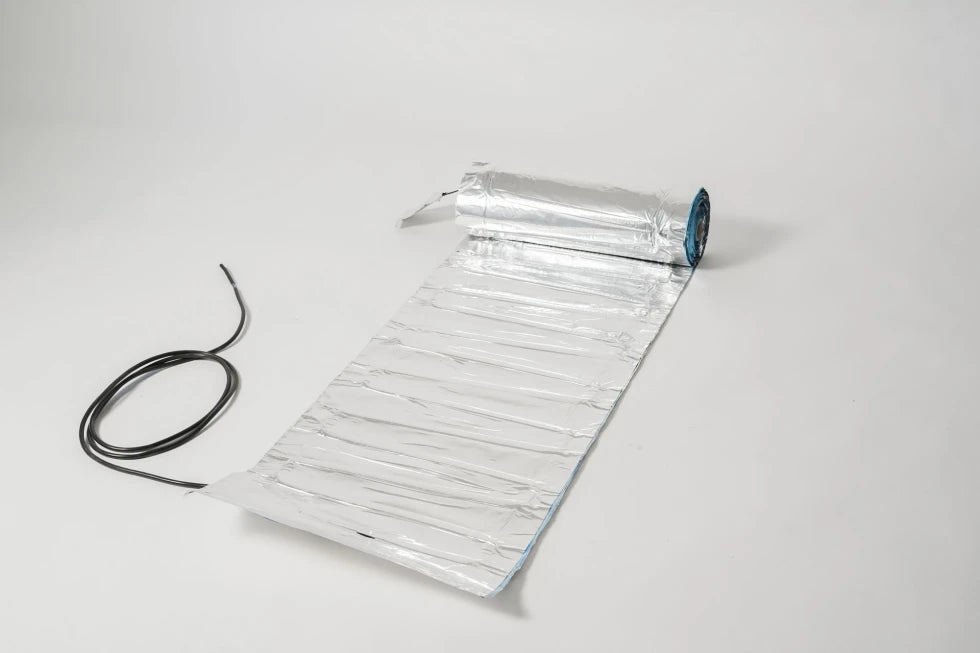

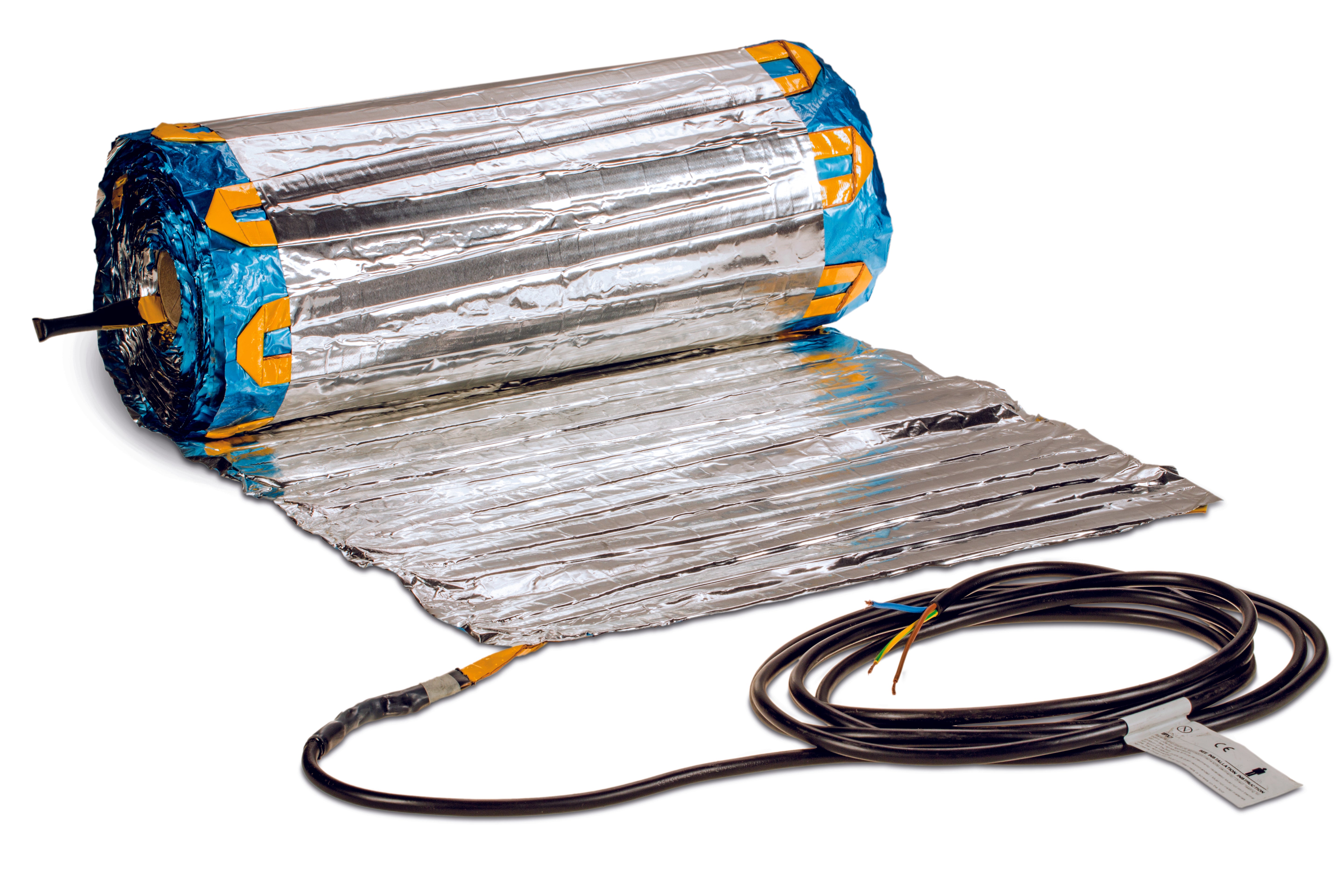

Model: Warmset Gold Aluminum Heating Mat – 85 W/m²

Type: Underfloor Heating System

Application: Best suited for dry-laid flooring such as parquet, laminated wood, floating floors, vinyl, and carpet. Not compatible with cement screeds or adhesive-based installations.

Sheath: Gold-colored polyimide film with high chemical resistance and excellent heating properties

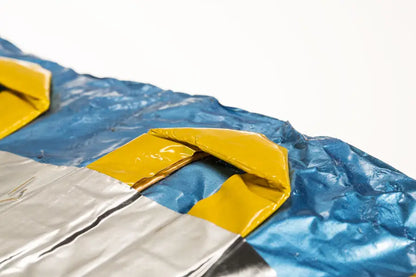

Base: Aluminum covering for efficient heat distribution and durability

Power Density: 85 W/m²

Model info

Model	Area Covered	Dimensions (m)	Power (W)	Current (A)	Resistance (Ω)
WH-0.5-85	0.5 m²	0.5 x 1	42.5	0.18	1170
WH-1-85	1.0 m²	0.5 x 2	85	0.36	622
WH-1.5-85	1.5 m²	0.5 x 3	127.5	0.55	415
WH-2-85	2.0 m²	0.5 x 4	170	0.74	311
WH-2.5-85	2.5 m²	0.5 x 5	213	0.92	249
WH-3-85	3.0 m²	0.5 x 6	255	1.11	207
WH-3.5-85	3.5 m²	0.5 x 7	298	1.29	178
WH-4-85	4.0 m²	0.5 x 8	340	1.50	155.6
WH-4.5-85	4.5 m²	0.5 x 9	383	1.70	138.3
WH-5-85	5.0 m²	0.5 x 10	425	1.85	125
WH-6-85	6.0 m²	0.5 x 12	510	2.21	104
WH-7-85	7.0 m²	0.5 x 14	595	2.58	88.9
WH-8-85	8.0 m²	0.5 x 16	680	2.95	77.8
WH-9-85	9.0 m²	0.5 x 18	765	3.33	69.2
WH-10-85	10.0 m²	0.5 x 20	850	3.70	62
WH-12-85	12.0 m²	0.5 x 24	1020	4.43	51.8
WH-14-85	14.0 m²	0.5 x 28	1190	5.17	44.5
