Carbontec heat film

€83,00 EUR (€83,00 m)

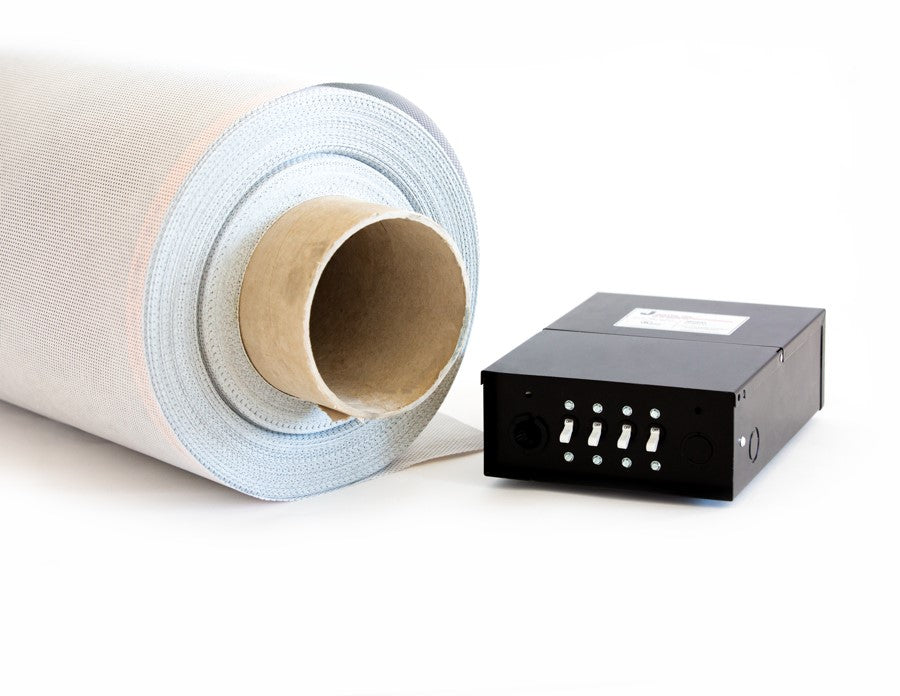

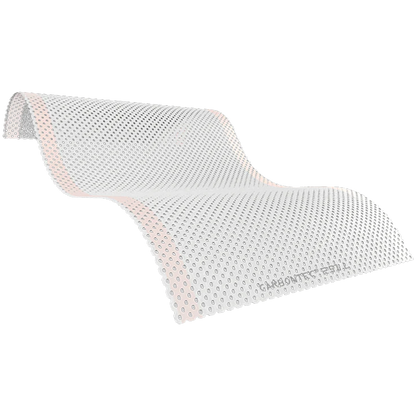

The Carbontec® Heating System uses UL-certified carbon fiber technology to deliver efficient radiant heating via an ultra-thin 0.21 mm polymer film. Infrared waves evenly warm the room while the system stays hidden in floors or ceilings, requiring only 20-25% coverage.

Operating at 24 volts and reaching 115°F, it connects easily through a thermostat and step-down transformer. Designed as a cost-effective alternative to traditional heating, Carbontec® ensures lower installation and operating expenses with superior energy efficiency.

Model & width: Carbontec 251-L-500-24-F Width 0.5m

Carbontec 251-L-500-24-F Width 0.5m
Carbontec 251-L-1000-36-F

Product variants

In stock

Pickup available at Lagedi

Usually ready in 5+ days

Need help?

Pairs well with

Carbontec heat film

Carbontec 251-L-500-24-F Width 0.5m

€83,00 EUR (€83,00 m)

Product Details

Details

Model: Carbontec Heating Film

Type: Polymer heating film for underfloor heating

Application: Compatible with almost all surface types, including laminate hardwood flooring

Power: 11.2 W/Ft² (38.21 BTU/hr per Ft²)

Voltage: Operates at 24 Volts AC with a hidden transformer reducing 110V input

Design: Thin, durable, and flexible for easy installation and long-term reliability

Energy Efficiency: Maximum heat efficiency with minimal power consumption

Safety: Protection through a primary building circuit breaker and secondary 25-amp circuit breaker

Thermostat Compatibility: Compatible with standard and Wi-Fi-enabled thermostats for precise temperature control

Manufacturer: Carbontec®

Model info

Parameter	Value
Power Input	120 VAC
Output (Carbontec Heating Film)	11.2 W/Ft²
Output Per Foot	20.3 W/Ft
Secondary Voltage	24 Volts AC
Primary Circuit Breaker Protection	Building Circuit Breaker
Secondary Circuit Breaker Protection	25 Amps
Expected Operating Surface Temperatures	65°F - 97°F (18°C - 36°C)
Min. Bending Radius	2 Inches (50mm)
Material	PET Film with Carbon Fibers and Fillers
Primary Conductor/Transformer	12 AWG (to the Mains and/or Controller)
Secondary Conductor/Transformer	10 AWG, Max. 30 Feet (10m) in Length
Heating Dimension Width	23 Inches (58.42cm), 21 Inches (53.34cm) Net Heating Width
Min. Length	3 Feet (1 Meter)
Max. Length	12 Feet (4 Meter)
Max. Heat Transfer Resistance Value For Flooring Coverings	1.0 hr x °F x Ft²/BTU (0.15 m²K/W)
BTU Output To Output Per Square Foot	38.21 BTU/hr per Ft²
BTU Output To Output Per Linear Foot	69.2 BTU/hr per Ft
