Kamen Pellet Kompakt

€4.181,00 EUR

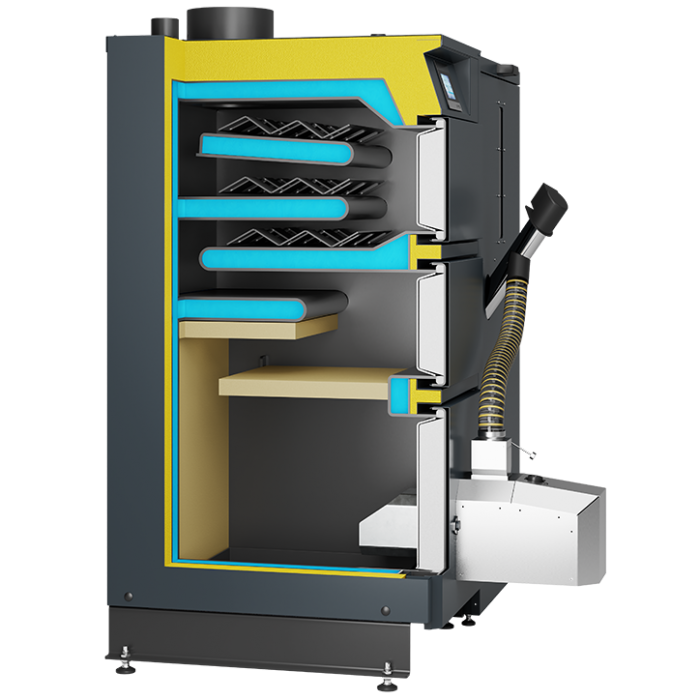

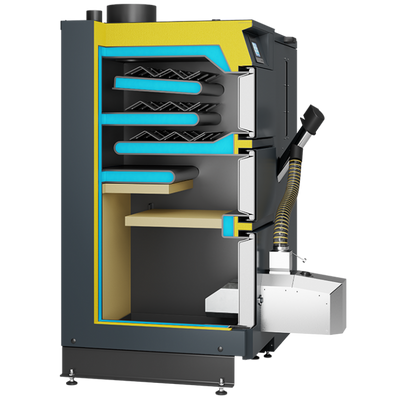

The KAMEN PELLET KOMPAKT pellet boiler is a highly efficient boiler that uses the latest technological methods in boiler manufacturing. An efficiency of over 93% is achieved thanks to a unique horizontal flue gas deflection system, ceramic plates in the boiler heat exchanger, and other design features. The boiler is also equipped with a Comfort stainless steel burner, manufactured using the latest technologies and capable of burning wood pellets, grain, and other fuels.

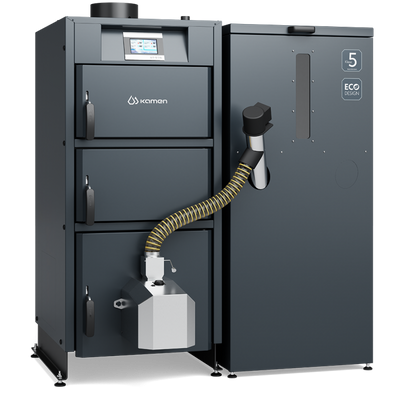

The boiler body is made of 6 mm thick boiler steel grade 265 GH. All doors are made of steel and sealed with environmentally friendly, high-temperature-resistant gaskets. The upper door is intended for cleaning the boiler. To reduce heat losses, the boiler is insulated with mineral wool and covered with a powder-coated steel sheet. In the KAMEN PELLET KOMPAKT boiler, the fuel hopper can be positioned on the right, left, or front of the boiler. The boiler door can also be configured to open to the right or to the left.

The high-quality Comfort burner allows the boiler to operate with virtually no maintenance. All boiler operation is controlled by an electronic controller developed using the latest technologies. The Comfort burner is equipped with automatic ignition, and the boiler heats the premises according to the heat demand. When the rooms reach the set temperature, the boiler automatically switches off, and if the room temperature drops below the set value, the burner switches on automatically (if a room thermostat is installed).

The Comfort burner features an extended range of electronic controller functions. In addition, this burner is equipped with the “Full Cleaning” function*.

* Full Cleaning function: an additional automatic mechanical ash removal system.

Power
Power: 17 kW
In stock

Pickup available at Lagedi

Usually ready in 5+ days

Pairs well with

Product Details

Details

Model: Kamen Pellet Kompakt

Available Power Options: 17 kW / 20 kW / 24 kW / 34 kW / 50 kW

Power Range: 5.1–17 kW / 6–20 kW / 7. 5–24 kW / 10. 2–34 kW / 15–50 kW

Efficiency (COP): >93% (90. 6–92.7%)

Energy Efficiency Class: A+

Boiler Class: 5 (according to PN-EN 303-5: 2012)

Heat Exchanger Material: 6 mm boiler steel

Heat Exchanger Warranty: Up to 6 years*

Fuel Tank Capacity: 260–500 L / 160–300 kg

Water Content: 79–189 L (depending on model)

Maximum Pressure: 1.8 bar

Water Temperature Range: 55–90°C

Power Supply: 230 V ~ 50 Hz

Flue Diameter: Ø159–Ø194 mm (depending on model)

Minimum Chimney Height: 7–10 m

Heating Area Coverage: 160–660 m² (depending on model)

Weight: 435–760 kg (depending on model)

Fuel Type: Wood pellets, grain, wood, wood briquettes

Model info

Pellet Kompakt — 17 20 24 34 50
Model — 17 20 24 34 50
Power from min to max kW 5. 1 — 17 6 — 20 7. 5 — 24 10. 2 — 34 15 — 50
Heat exchanger area m2 2.0 2.5 3.0 3.5 5.0
Boiler class according to PN-EN 303-5: 2012 — 5 5 5 5 5
Energy efficiency class — A+ A+ A+ A+ A+
Maximum boiler width (A) mm 1015 1065 1135 1135 1525
Boiler width (A1) mm 475 545 615 615 745
Fuel tank width (A2) mm 500 500 500 500 755
Maximum boiler depth (B) mm 980 980 980 1080 1340
Depth (B1) mm 655 655 655 755 855
Hopper depth mm 750 750 750 750 850
Boiler height (H)* mm 1210 1210 1210 1210 1620
Supply pipe height (H1) ** mm 1230 1230 1230 1230 1640
Height to flue edge (H2) * mm 1315 1315 1315 1315 1725
Height to flue center when rear mounted mm 990 990 990 990 1400
Flue diameter (ØD) Ø mm Ø159 Ø178 Ø178 Ø178 Ø194
Return pipe height (H3)* mm 215 215 215 215 225
Fuel tank capacity l/kg 260
~160		 260
~160		 260
~160		 260
~160		 500
~300
Boiler weight kg 435 485 535 595 760
Water content in boiler l 79 86 96 115 189
Boiler thermal efficiency % 90. 6 — 92.7
Maximum pressure bar 1.8
Boiler water temperature (Min. / Max.) °C 55 — 90
Power supply V/Hz ~230 / 50
Minimum flue draft Pa 22 24 26 28 33
Minimum chimney height m 7 7 8 8 10
Minimum chimney parameters mm
cm x cm		 Ø160
15 x 15		 Ø180
17 x 17		 Ø180
17 x 17		 Ø200
19 x 19		 Ø260
23 x 23
Heated room area m2 160 — 220 220 — 260 260 — 330 330 — 450 450 — 660
