Kamen Dremax

€1.854,00 EUR

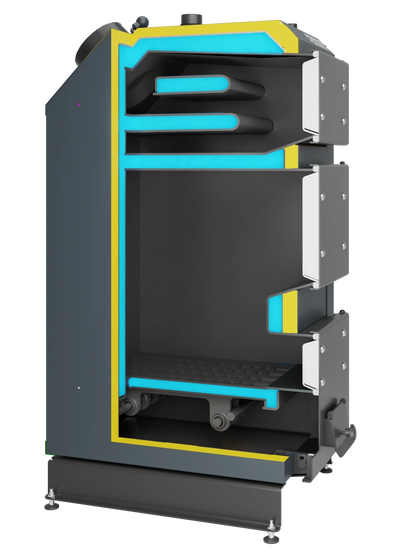

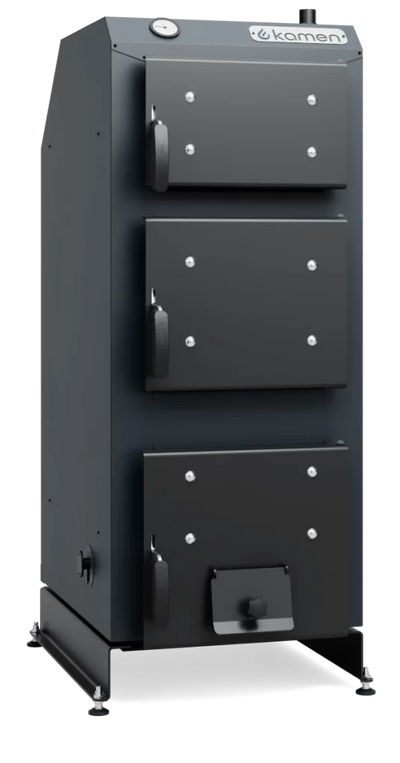

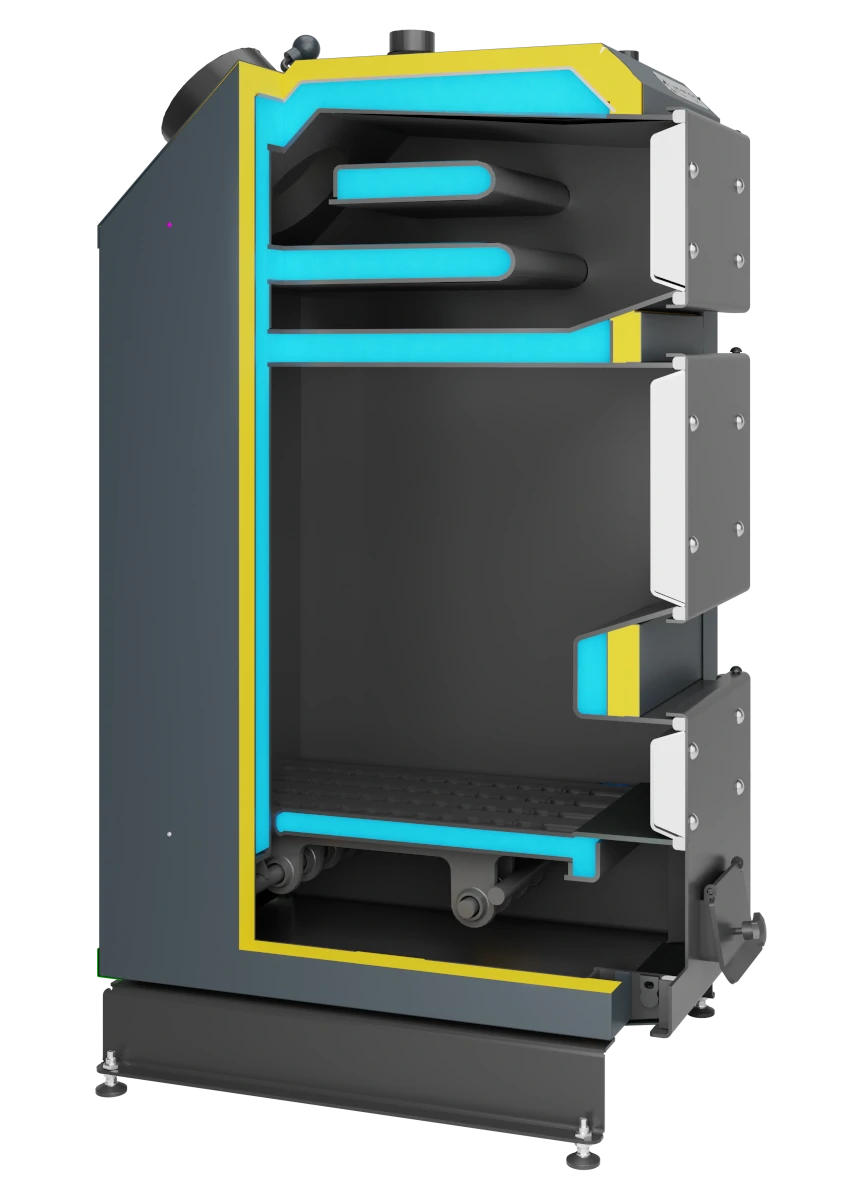

Boiler KAMEN DREMAX burns fuel in top combustion mode and has a new design of horizontal double smoke translation technology. The boiler is equipped with a large fuel loading door and a greatly enlarged fuel loading chamber (up to 65 cm long). This makes it convenient to burn firewood and wood briquettes in the boiler.

Air enters the combustion chamber through an air damper mounted in the lower door which is adjusted manually using a draft regulator. The boiler chimney is installed at an angle of 45 degrees, which makes the boiler take up less space in the boiler room and more convenient to connect to the chimney.

The boiler heat exchanger and water grate are made of 6 mm thick boiler steel (265 GH) and a movable cast iron grate with a handle on the left or right side of the boiler is installed.

All doors are made of steel and sealed with an environmentally friendly, high-temperature seal. The upper door is designed for cleaning the boiler. To reduce heat loss, the boiler is insulated with mineral wool and covered with powder-coated steel sheet.

The boiler supply and return connection can be installed on the left or right side of the boiler (optional).

Power
Power: 10 kW
In stock

Pickup available at Lagedi

Usually ready in 5+ days

Pairs well with

Product Details

Details

Model: Kamen DREMAX

Combustion Type: Top combustion mode

Smoke Translation Technology: Horizontal double smoke translation

Fuel Loading Chamber Length: Up to 65 cm

Fuel Type: Firewood and wood briquettes

Air Control: Manual draft regulator with air damper in lower door

Chimney Installation Angle: 45 degrees

Heat Exchanger Material: 6 mm boiler steel (265 GH)

Grate Type: Movable cast iron grate with left or right side handle

Door Material: Steel with high-temperature environmentally friendly seal

Insulation: Mineral wool with powder-coated steel sheet cover

Connection Placement: Left or right side (optional)

Boiler Thermal Efficiency: 82-84%

Maximum Pressure: 1.5 bar

Boiler Water Temperature: 55/90°C

Power Source: 230/50 V/Hz

Available Power Options: 10 kW / 16 kW / 20 kW / 26 kW / 32 kW

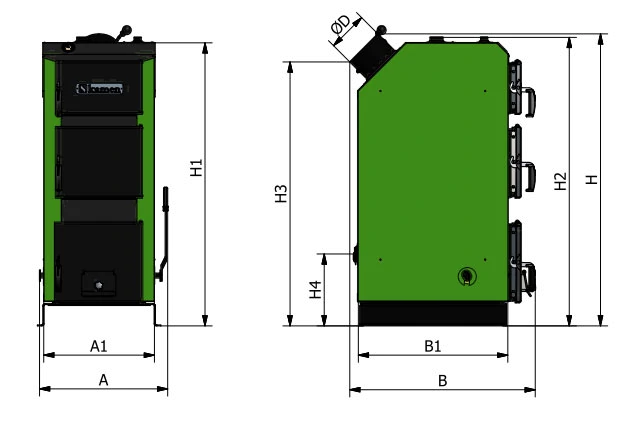

Model info

Kamen dremax 10 kW 16 kW 20 kW 26 kW 32 kW
Power kW 10 kW 16 kW 20 kW 26 kW 32 kW
Heated surface m2 1.3 1.9 2.2 2.8 3.4
Maximum width (A) mm 495 495 550 600 670
Width (A1) mm 435 435 490 540 610
Maximum depth (B) mm 720 770 820 820 870
Depth (B1) mm 635 685 735 735 785
Chimney length (B2) mm 105 105 105 105 105
Height "Dremax" (H) * mm 1110 1190 1295 1375 1375
Boiler height (H1) * mm 1105 1185 1255 1335 1335
Water supply head (H2) * mm 1125 1205 1275 1355 1355
Height to chimney (H3) * mm 1005 1105 1160 1240 1240
Chimney diameter (ØD) mm Ø159 Ø159 Ø178 Ø178 Ø178
Return water height (H4) * mm 290 290 290 290 290
Furnace width (K) mm 263 263 318 368 438
Fireplace depth (L) mm 400 450 500 500 550
Fireplace height (M) mm 385 465 535 615 615
Door width (N) mm 275 275 330 380 450
Door height (O) mm 210 290 290 290 290
Firebox capacity kg 28 32 47 63 85
Boiler weight kg 210 250 290 340 400
The amount of water in the boiler L 47 59 71 82 96
Boiler thermal efficiency % 82-84%
Maximum pressure bar 1.5
Boiler water temperature (min. / max.) oC 55/90
Source of power V / Hz 230/50
Chimney draft Pa 20 23 26 28 30
Minimum chimney height m 6 7 8 8 9
Minimum parameters of the chimney (Ømm) (cm×cm) Ø170 15 × 15 Ø190 17 × 17 Ø220 20 × 20 Ø220 20 × 20 Ø250 22 × 22
The area of the heated room m2 up to 100 100-160 160-200 200-260 260-320
Height adjustment from 24mm to 32mm (up to 40kW) *
