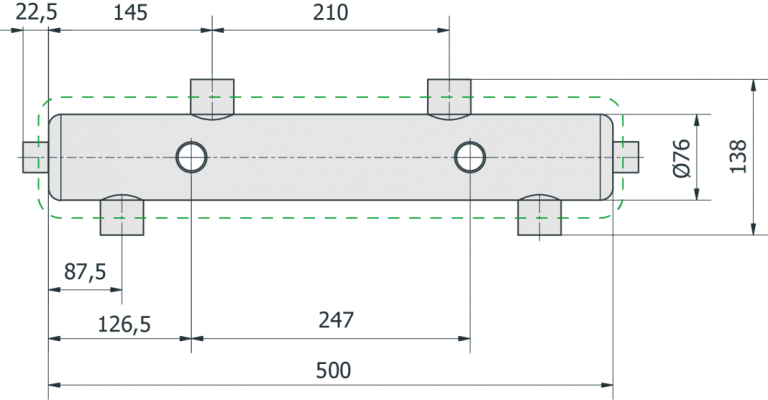

Kamen low loss headers from 1 to 1
Kamen low loss headers from 1 to 1

Vendor:Kamen

Kamen low loss headers from 1 to 1

€219,00 EUR

Typically low loss headers are used in installations with several heating circuits (for example convection heaters and underfloor heating) with different requirements, and each of them has a separate pump. In modern appliances, various heat sources are increasingly used, such as an automatic pellet boiler, a gas boiler or a heat pump, and etc. If low loss header installed each system can work independently and the pumps do not interfere with each other.

Hydraulic low loss headers are a very simple device, but they play an extremely important role in heating systems. It is an enclosed space, usually made of steel, to which the primary circuit(s) of heat are welded on one side and the secondary circuits (installation side) on the other. The primary side supplies heat to the header and the secondary side to the receiver. Hydraulic low loss headers Kamen SH 1-1 is available in insulated and non-insulated versions.

Products
Products : Kamen SH1NA1-OC insulated hydraulic vessel
In stock

Pickup available at Lagedi

Usually ready in 5+ days

Pairs well with

Product Details

Details

Product: Hydraulic low loss headers

Model: Kamen SH 1-1

Function: Separates heating circuits in multi-circuit installations

Application: Installations with multiple heating circuits (convection heaters, underfloor heating, etc.)

Heat Source Compatibility: Automatic pellet boiler, gas boiler, heat pump, and others

System Independence: Each system can work independently without pump interference

Construction: Enclosed space made of steel

Primary Circuit Side: Heat supply side, welded to one side of header

Secondary Circuit Side: Installation/receiver side, welded to opposite side

Available Versions: Insulated (Kamen SH1NA1-OC) and non-insulated (Kamen SH1NA1-NO)

Material: Steel

Water Capacity: 2 l

Max. Power: 40 kW

Max. Flow: 3. 5 m3/h

Max. Pressure: 6 bar

Max. Operating Temperature: 110°C

Expansion Tank Housing: Steel

Connection Diameter: GW G1

Thermometer Connection Diameter: GW G½

Glycol Concentration: max 50%

Model info

Model Version
Kamen SH1NA1-NO Non-insulated version.
Kamen SH1NA1-OC Insulated version.

Specification Value
Water capacity 2 l
Max. power 40 kW
Max. to flow 3.5 m3 / h
Max. pressure 6 bar
Max. operating temp 110 ° C
Expansion tank housing Steel
Connection diameter GW G1
Thermometer connection diameter GW G½
Glycol concentration max 50%
